CPV115SLinea

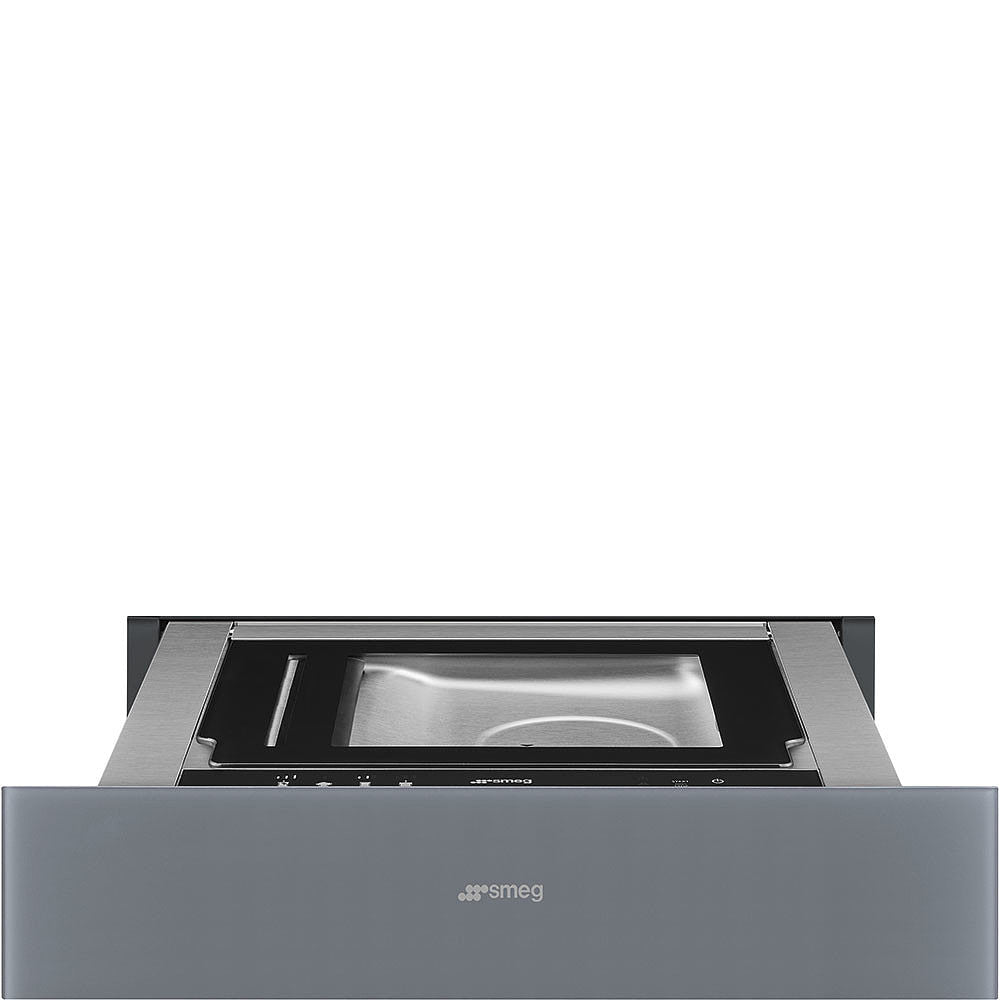

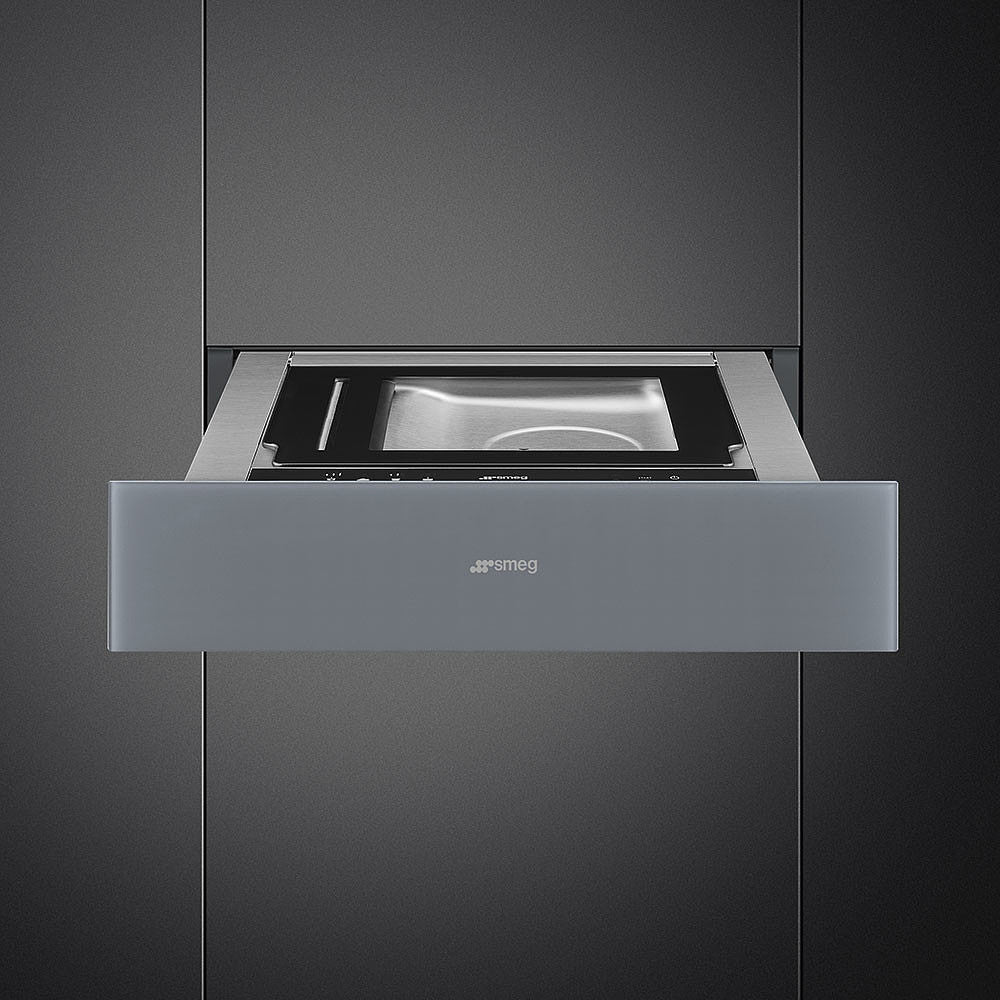

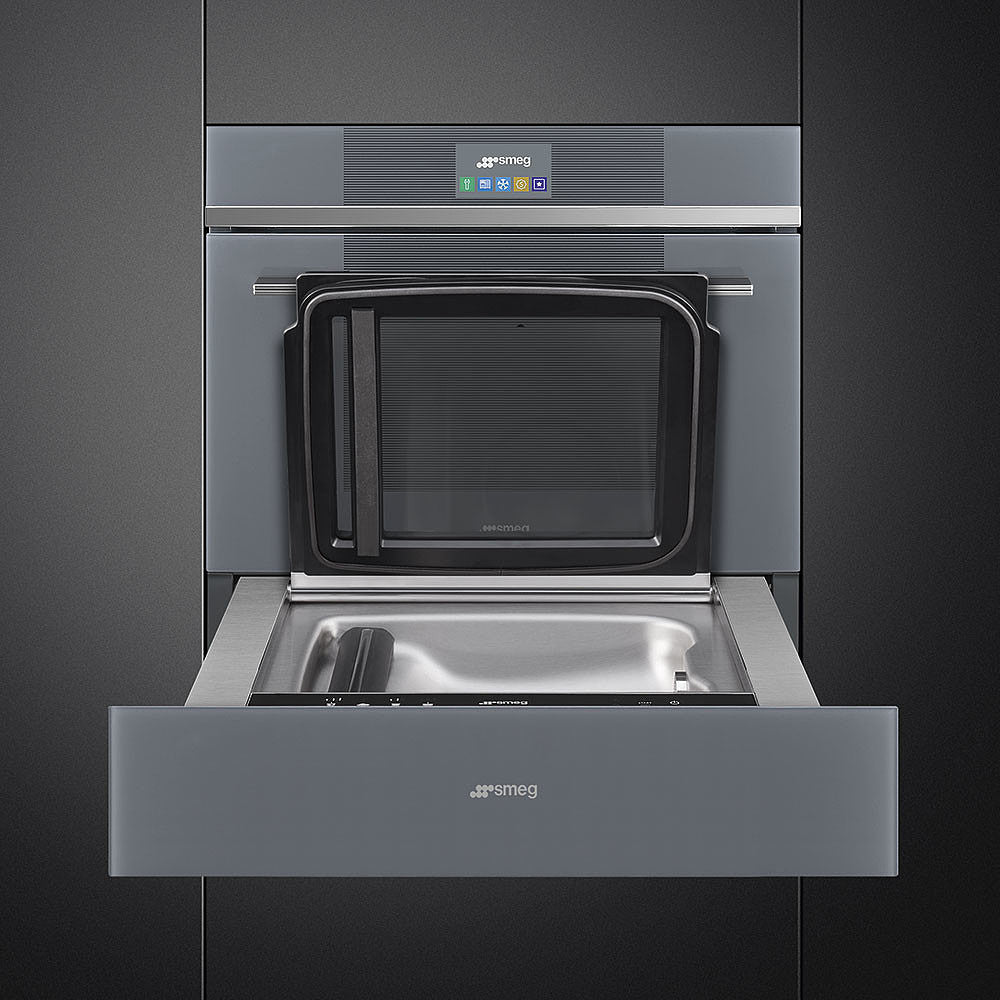

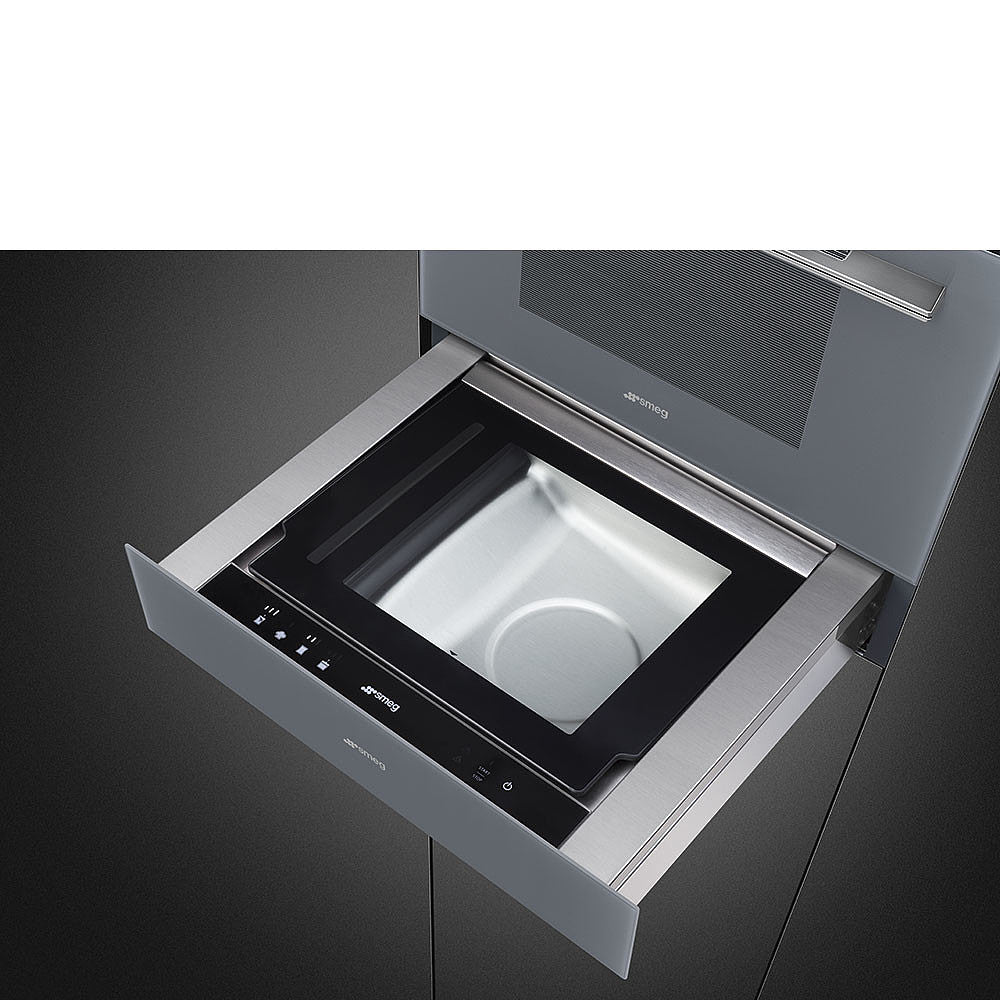

15cm Height Linea Vacuum Drawer Silver Glass

From £2,949.00

Colour: Silver

Neptune Grey
Black
Silver

Product variants

Linea Vacuum Drawer

Silver

From £2,949.00

Product benefits at a glance

See all benefits

Push-pull door opening

Effortlessly open and close the drawer with a simple push mechanism

Vitality System

The combined use of the steam oven, blast chiller and vacuum drawer allows the preservation of product characteristics and maximum flavour enhancement

Preservation cycle

3 preservation cycles (delicate, preservation, sous vide)

See all benefits

Full list of product benefits

Push-pull door opening

Effortlessly open and close the drawer with a simple push mechanism

Vitality System

The combined use of the steam oven, blast chiller and vacuum drawer allows the preservation of product characteristics and maximum flavour enhancement

Preservation cycle

3 preservation cycles (delicate, preservation, sous vide)

Vacuum in container cycle

3 vacuum levels (delicate, medium, strong)

Chef function

Master impeccable marinades and infusions with the Chef Mode

Product Information

Downloads

Aesthetics

Colour Silver

Finishing Silver

Aesthetics Linea

Material Glass

Program / Functions

Preservation cycle Yes, 3 levels (delicate, preservation, sous vide)

Vacuum in container cycle Yes, 3 levels (delicate, medium, strong)

Chef function Yes, marinade and infusion

Welding Yes, 3 levels (delicate, medium, strong, depending on the kind of bag used)

Technical Features

Capacity 6,5 l

Opening mechanism Push-pull

Base material Stainless steel 304

Lid material Tempered glass with frame

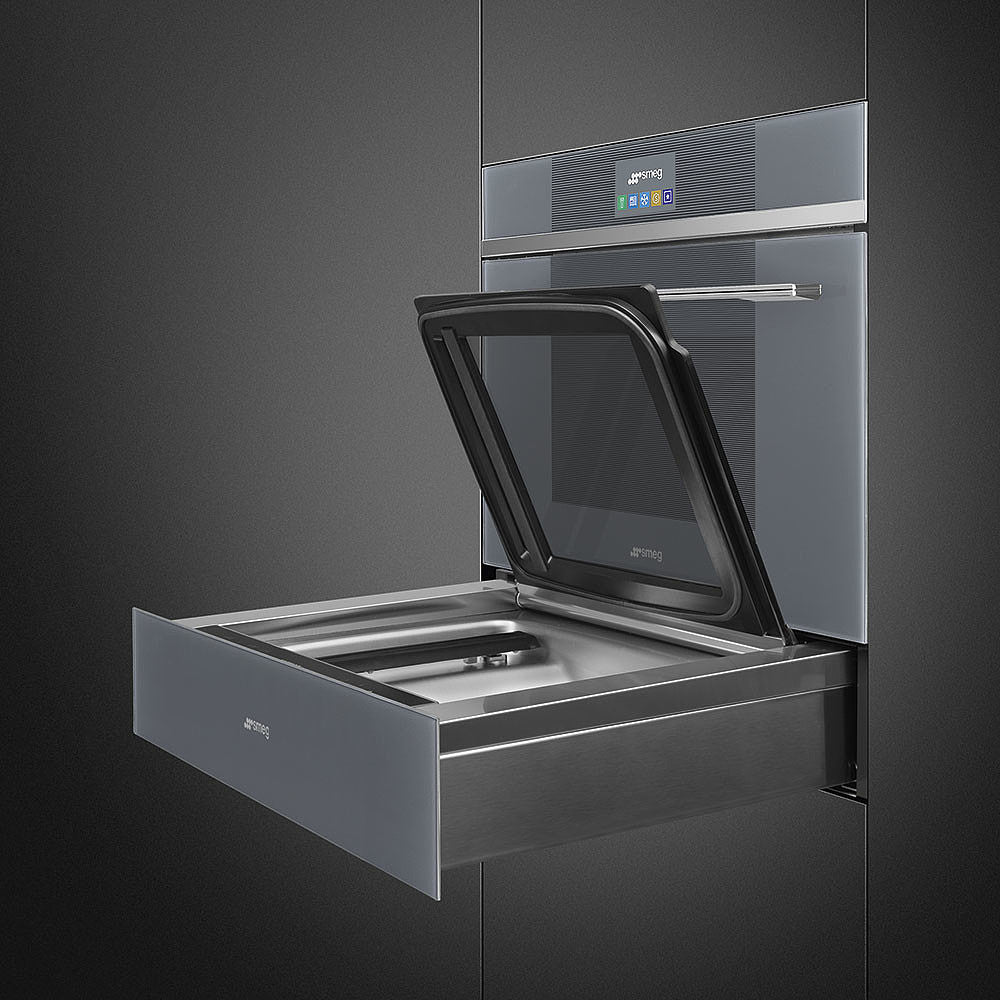

Lid opening 65° +/- 3°

Drawer stabilisation device Yes

Drawer maximum protrusion 453 +/- 2 mm

Max weight allowance 15 kg

Maximum drawer loading weight 48 kg

Pump flow 4 m³/h

Safety solenoid valve anti oil reflux Yes

Dehumidification pump cycle Yes, automatic

Enabling vacuum bar lenght 260 mm

Removable enabling vacuum bar Yes

Welding type Double-phase

Preservation cycle duration 1' - 1'20''

Reachable vacuum 2-10 millibar (99,9%)

Vacuum sensor Yes, accuracy 10 mbar

Accessories included Bags for food conservation, Bags for sous-vide cooking

Electrical Connection

Plug (F;E) Schuko

Nominal power 240 W

Current 1 A

Voltage (V) 220-240 V

Frequency (Hz) 50-60 Hz

Logistic Information

Width (mm) 597 mm

Depth (mm) 570 mm

Net weight (kg) 29.000 kg

Gross weight (kg) 32.000 kg

Product Height (mm) 135 mm

Dimensions of the product (mm) 135x597x570

Packed width 700 mm

Packaged depth 700 mm

Product Height (mm) packed 230 mm

Dimensions of the packed product (mm) 230X700X700

Maximum stackability 8

Type of packaging Cardboard

Packaging composition - paper & cardboard (kg) 2.217 kg

Packaging composition - polystyrene (kg) 0.788 kg

Packaging composition - wood (kg) 0.000 kg

Packaging composition - plastic (kg) 0.048 kg
